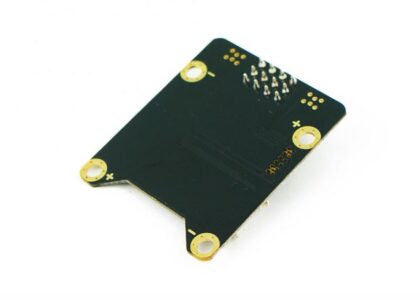

TBS Wing Layer

CHF 22.90

Auf Lager

Kategorien: ,

Beschreibung

TBS Wing Layer is our latest add-on to to Powercube family. Together with the TBS FPVision it is the ultimatie package for small wings.

FEATURES

  • Additional BST port, (eg. for TBS GPS)
  • 100A power connections for external ESC (connections after integrated 100A current Sensor on FPVision)
  • Integrated servo connector adapter for Crossfire Micro V2 receiver
  • Integrated PWM link for Powercube ESC (ESC will automatically connect to PWM1)
  • 4.8V / 2A Servo BEC supply from FPVision (2A continuous, 3A peak, enough for two mid size Servos)
  • Backup Servo BEC input with 2x 5A Diodes

COMPATIBLE WITH

  • TBS Powercube FPVision
  • TBS BULLETPROOF 25A 6S ESC (optional)
  • Crossfire Micro V2 receiver (optional)

INCLUDES

  • 1x TBS Wing Layer
  • 4x Brass Standoffs
  • 4x Black Nut
