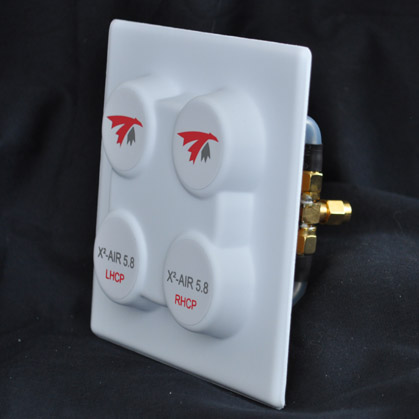

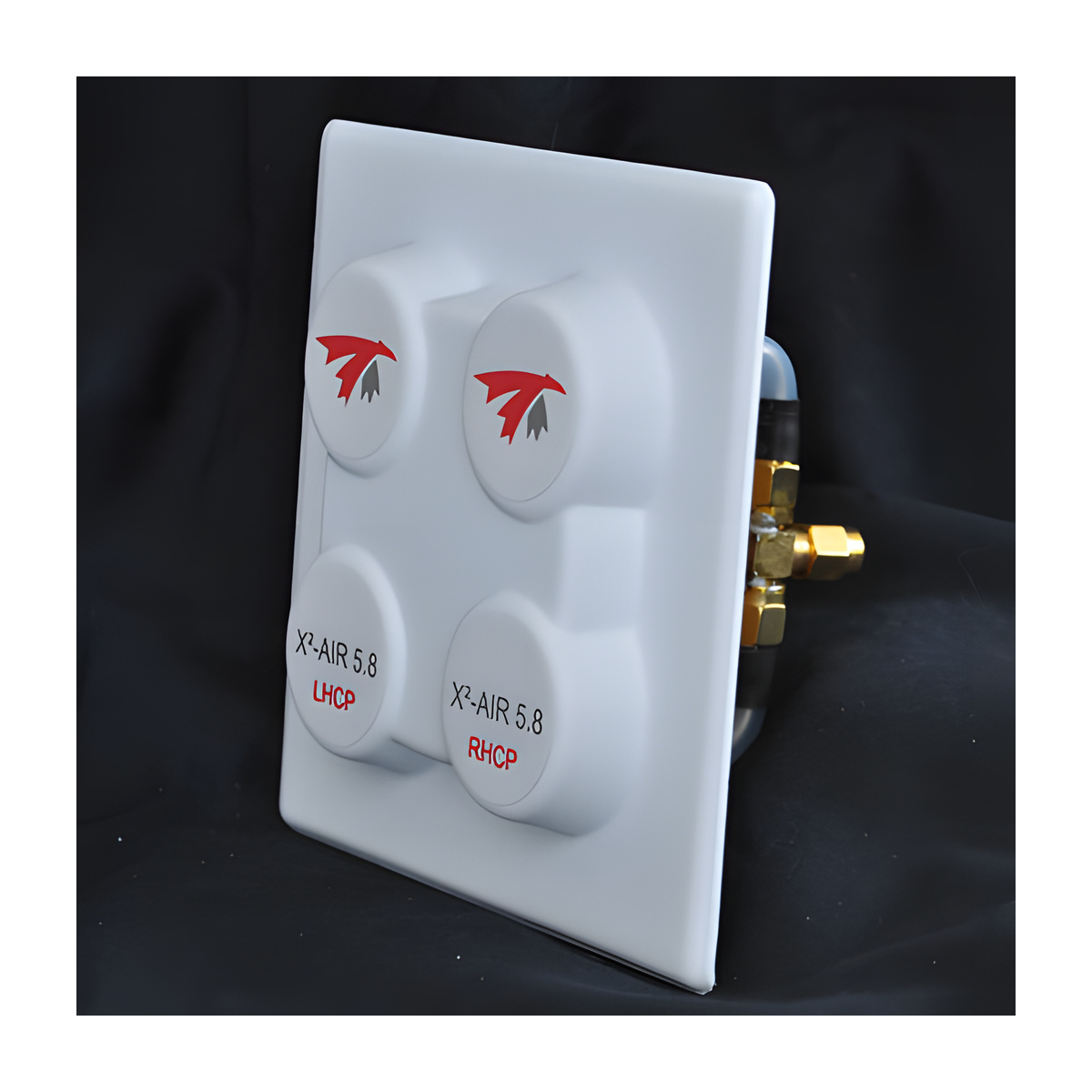

Two X²-AIR on a single panel, one RHCP and one LHCP for MIMO systems or clever “ultimate link” analog systems.
- Frequencies: 5.6-5.95GHz
- Gain: 13 dBic
- Axial Ratio: 1 (perfect)
- Beam-width Horizontal*: 150deg
- Beam-width Vertical*: 62deg
- Hor. beam @-3dB**: 74deg.
- Vert. beam @-3dB**: 34deg.
- Connector: SMA x2
- Dimension: 4.1″x4.1″x0.6″ (SMA cable length of 1.5″)
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
