TBS PowerCube 2in1

CHF 132.40

Vorrätig (kann nachgeliefert werden)

Beschreibung

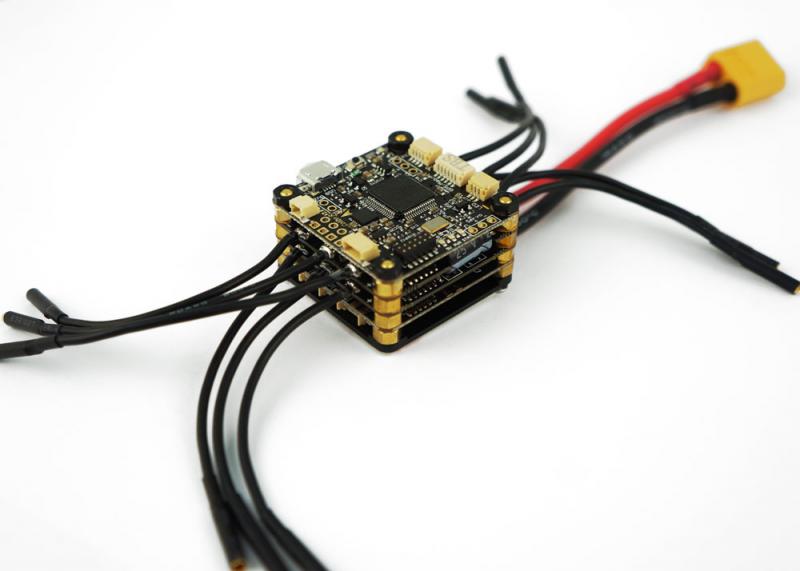

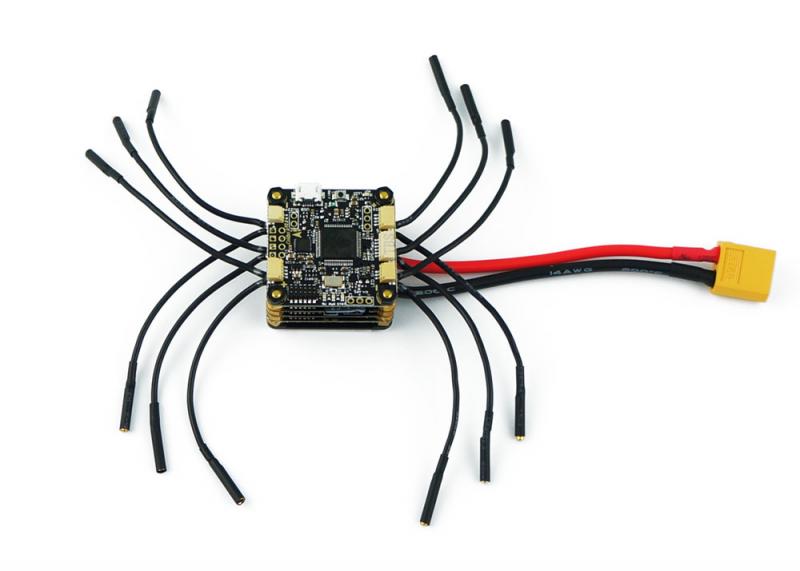

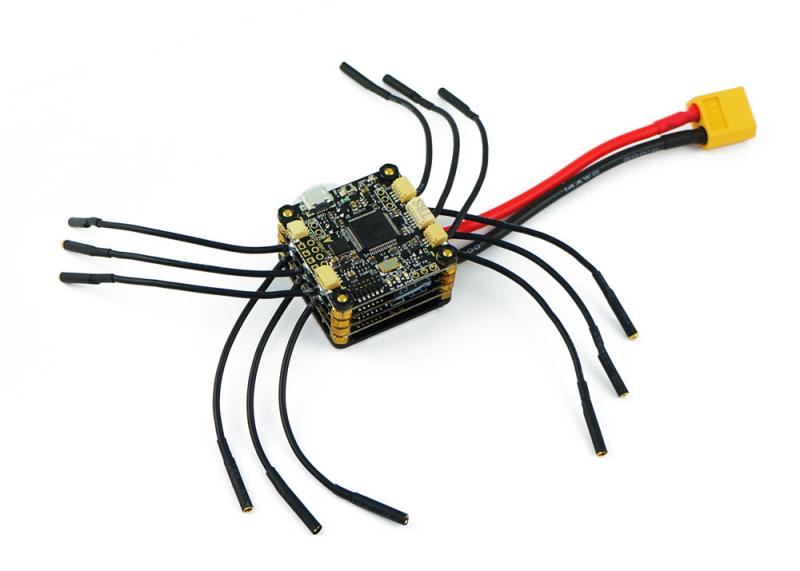

Stacked compact, a all-in-one power package for your fpv racer between 120 and 330 size. 2-5S capable, 25A continuous, 45A burst ESCs provide ample juice. The Colibri RACE is a F3 based flight controller with enough processing power and memory to achieve low looptimes. The ESCs are TBS designs based on our BULLETPROOF technology, running the most recent BLHeli-S firmware.

The TBS POWERCUBE combines knowledge and experience over 3 years of research and racing use. It is the new standard for performance, reliability, ease-of use and cost in race machines. Main highlights include

  • All-in-one, solder-free system for race quads. Comes with – or plugs into – everything you need.
  • Optimized for centralized weight distribution
  • Colibri V2.0, STM32F3-based FC, with the best IMU MPU6000 (SPI, 8KHz)
  • Bulletproof 2in1 25A 5S DSHOT600 BlHeli-S, BlHeli-S V16.x (FH-00), most reliable ESC in the industry
  • PDB V2.0, providing now double power with 4A on 5V and 250mA on 12V.
  • Patented power distribution
  • Clean, filtered power for fpv camera and video transmitter, selectable between 5V/12V and VBatt.
  • Compatible with FPVision and Core PNP PRO OSD

NEW! TBS COLIBRI RACE V2.0 FLIGHTCONTROL

  • MPU6000 new generation accelerometer/gyro
  • STM32F303 based chipset for ultimate performance
  • PPM, SBUS, DSM, DSMX input (5V and 3.3V provided over internal BUS)
  • 6 PWM ESC output channels (autoconnect, internal BUS)
  • Choose between plug & play sockets or solder pads for R/C and buzzer
  • RGB LED strip support incl. power management
  • Extension port for GPS / external compass / pressure sensor
  • UART port for peripherals (Blackbox, FrSky telemetry etc.)
  • 5V buzzer output

NEW! 2IN1 V2 BULLETPROOF 25A 5S BLHELI-S ESC (V2)

  • SiLabs EFM8BB2 50MHz with PWM gate drivers
  • BLHeli-S (FH-00) latest generation firmware pre-flashed
  • 2-5S capable
  • 25A continuous power with active burn protection
  • DSHOT600, 32kHz (MultiShot) capable, OneShot capable, PWM capable
  • Fastest throttle response, braking
  • Lowest minimum RPM
  • Full water and dust protection

TECHNICAL SPECIFICATIONS

  • STM32 F3, MPU6000 SPI Flight controller running Betaflight
  • Regulated and filtered power for Cam and VTx (5V/12V/VBatt switchable)
  • 25A continuous, 45A peak ESC (each)
  • 2-5S capable
  • Power distribution: 120A continuous
  • Current Sensor: 100A sense, 250A peak throughput
  • Dimensions: 36mm x 36mm x 22mm
  • Weight: 56g incl. PDB, wires & connectors

PACKAGE CONTENTS

  • TBS POWERCUBE stack with Flight Control, 2x 2in1 ESCs, PDB
  • Terminating plastic shoe to isolate the TBS PowerCube carbon fiber frames
  • Cables for FPV Camera and video transmitter
  • External 5V Buzzer
  • LED pigtail cable
