Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

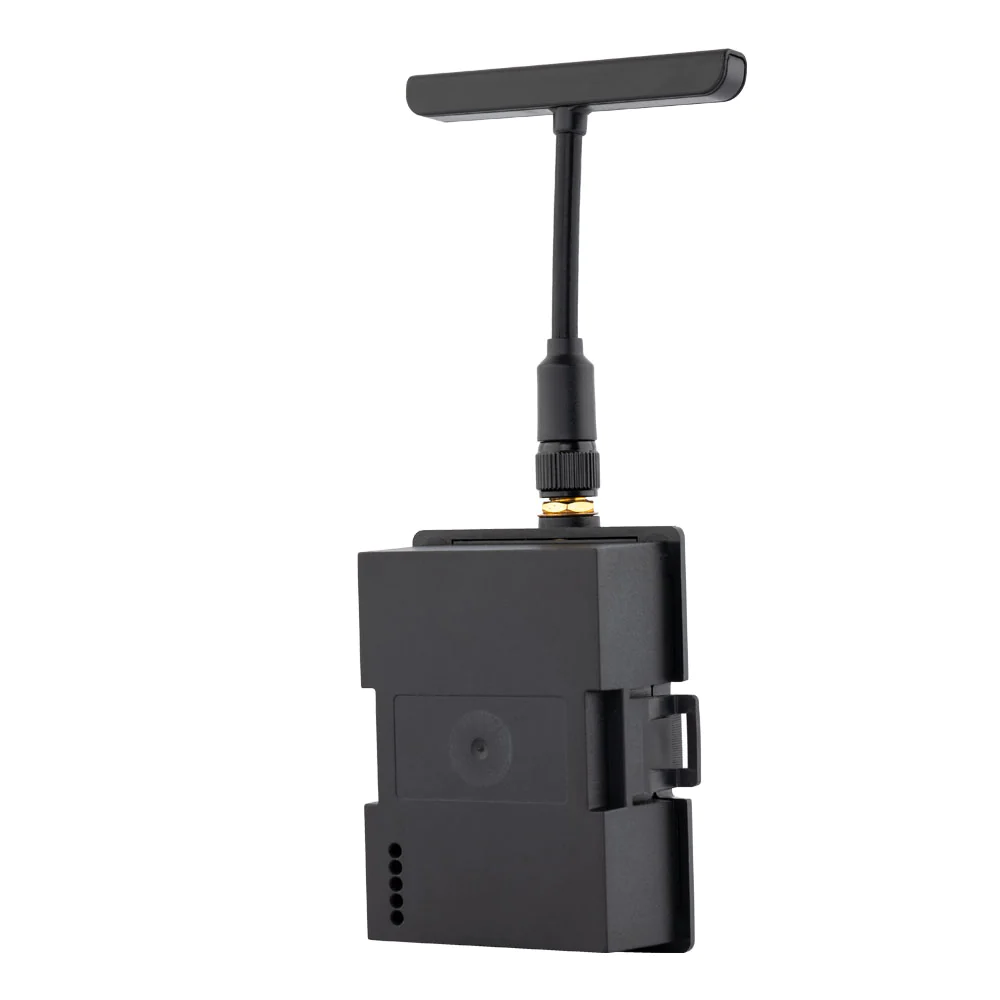

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

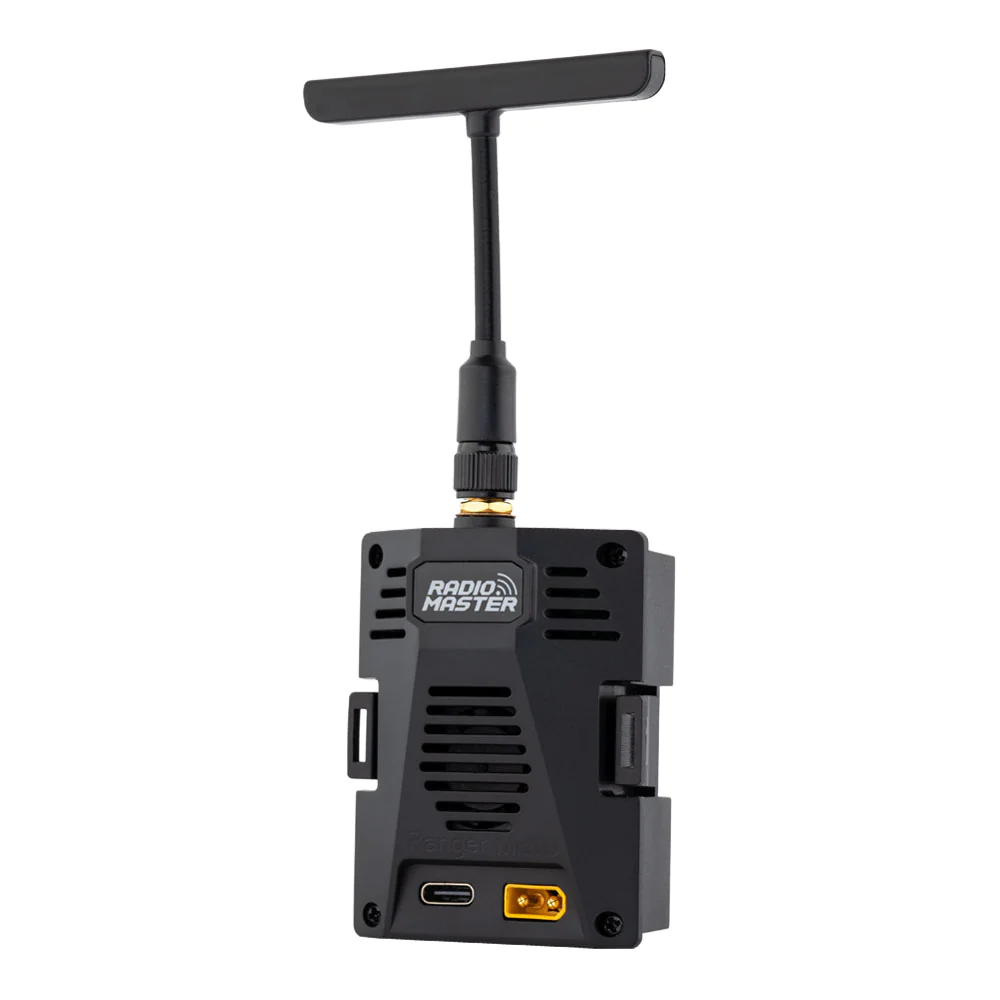

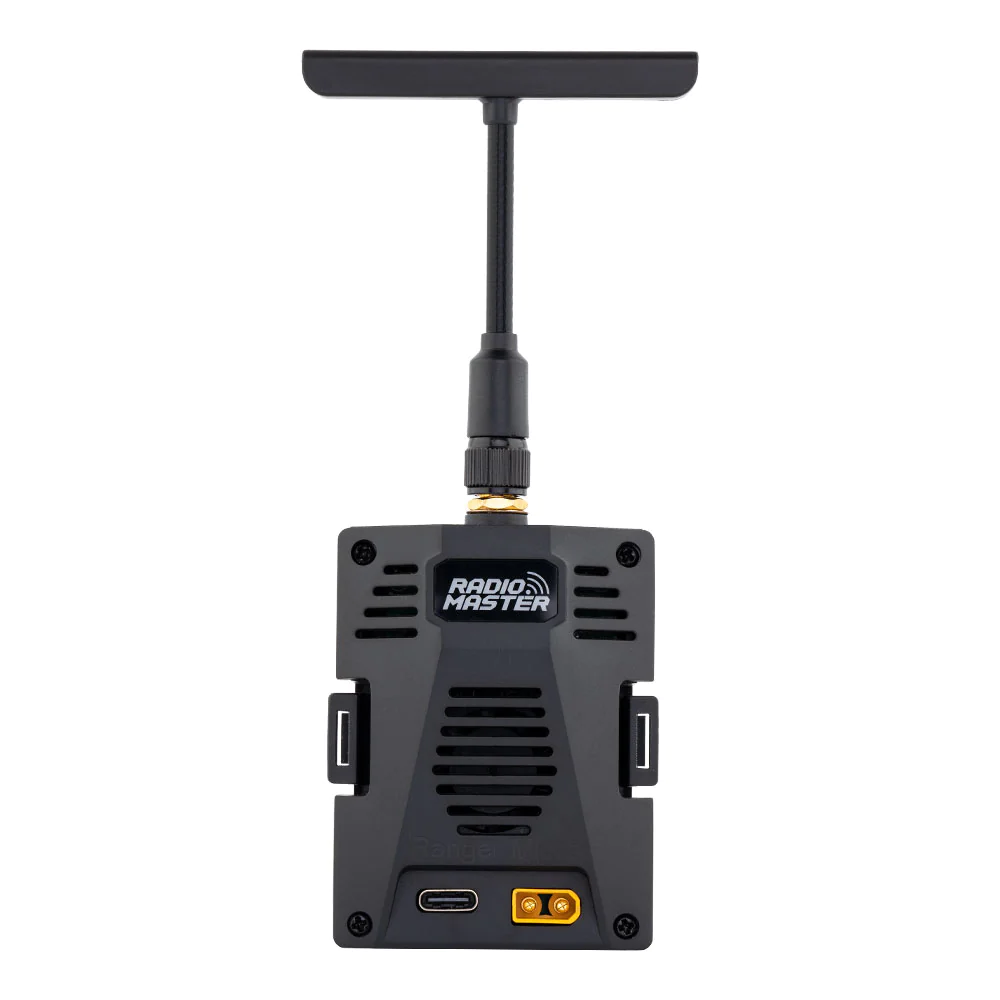

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
Features
-
High-efficiency cooling system
- Up to 1Watt Power output
-
Wifi and Bluetooth support
-
Packet rates up to F-1000Hz
-
T-antenna included
-
With the Micro connector, support TX16S MKII and TX12 MKII radio
Specification
-
Item: Ranger Micro Module
-
Regulatory Domain: ISM2400
-
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
-
RF chip: SX1281IMLTRT
-
Frequency Range: 2400 MHz – 2480 MHz
-
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
-
Minimum receiver refresh rate: 25Hz
-
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
-
Wifi Support: Yes
-
Bluetooth support: Yes
-

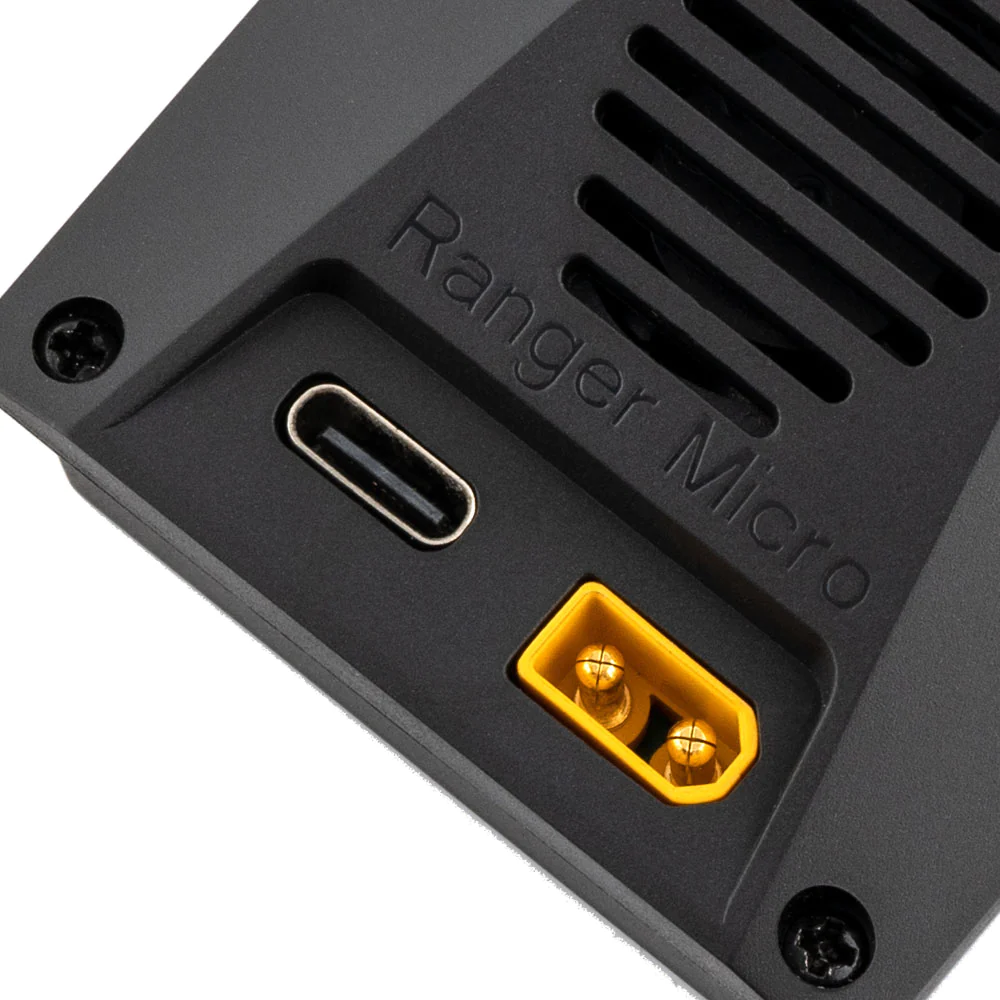

XT30 Power supply voltage: DC 6V – 16.8V
-
Weight: 50g (with antenna) / 40.5g (without antenna)
-
Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
Size
Ranger Series
We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project visit https://www.expresslrs.org/
- Ranger 2.4GHz ELRS Module
- Ranger Micro 2.4GHZ ELRS Module
- Ranger Nano 2.4GHZ ELRS Module
- 2.4GHz T Antenna
- 2.4GHz Moxon Antenna
How to Replace Ranger Micro Board
Package Includes
-
1 * Ranger Micro Module
-
1 * T Antenna

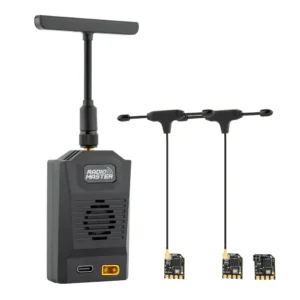

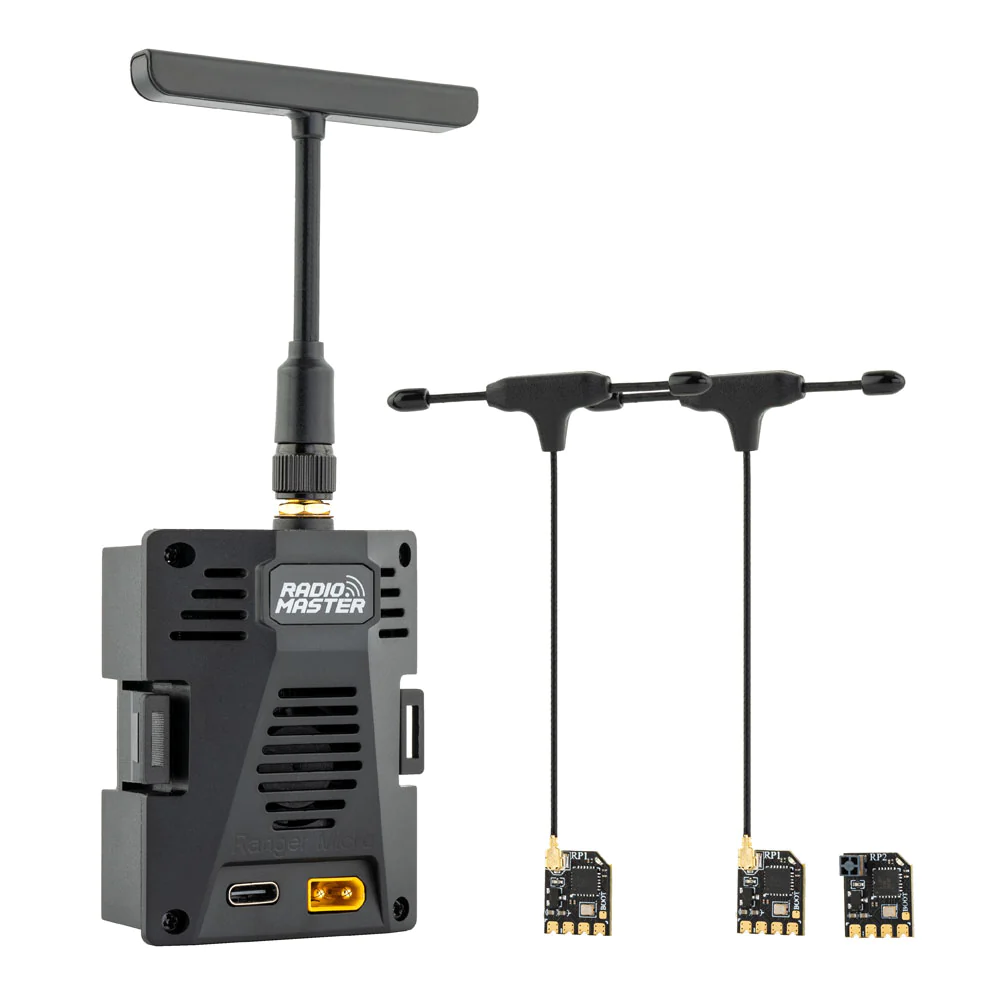

Need receivers too? Purchase the Ranger Micro Combo, which includes the following items:
