TinysLEDs Unity Mini F7 Flight Controller

CHF 37.90

Am Lager, kann sofort verschickt werden.

Kategorie:

Beschreibung

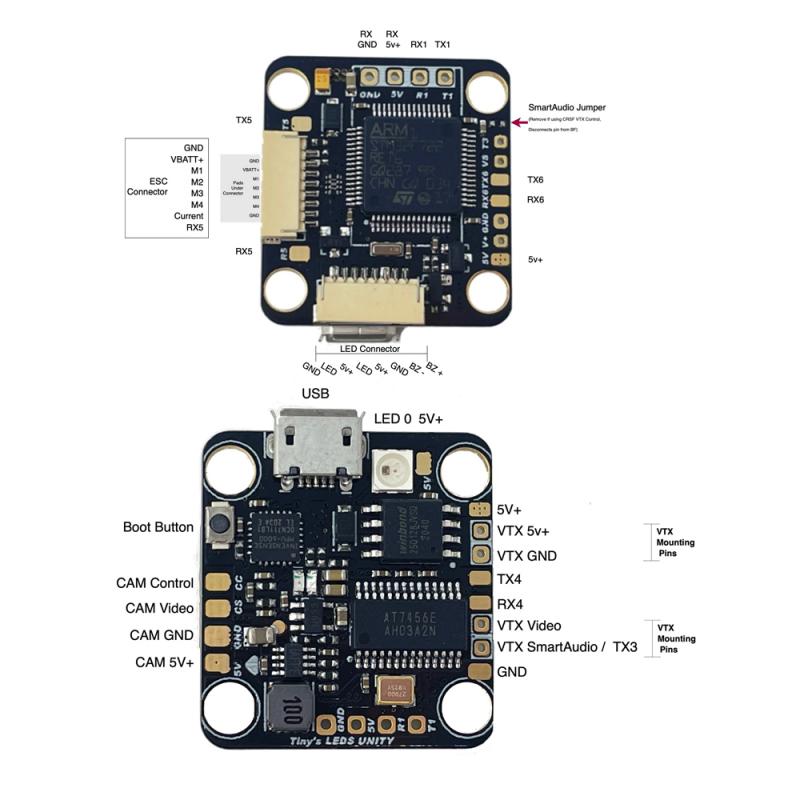

FEATURES:

  • MCU: STM32F722RET6 216MHz
  • Gyro: MPU6000
  • Betaflight OSD
  • Up to 6S (28V) direct battery power
  • Buzzer pads for external buzzer
  • Built in voltage monitoring resistor
  • 5V 2A BEC
  • Led strip shares 5V with 5V/2A BEC
  • 6 UARTS
  • UART 3 TX: VTX Smart Audio
  • UART 1 RX/TX Receiver pins
  • Built in camera control pin with resistor and capacitor
  • 5 Full UARTS with RX AND TX pins
  • TX3,RX3 can be used for I2C for external compass
  • 5V VTX & CAM power
  • 16MB Blackbox flash chip
  • RealPit VTX pit mode switch
  • ESC Connector pads below connector
  • M4 Can be selected either led_strip signal or M4 signal for RPM filtering
  • LED on board for Status or other functions
  • 20×20 Mounting 25x25mm Board Size

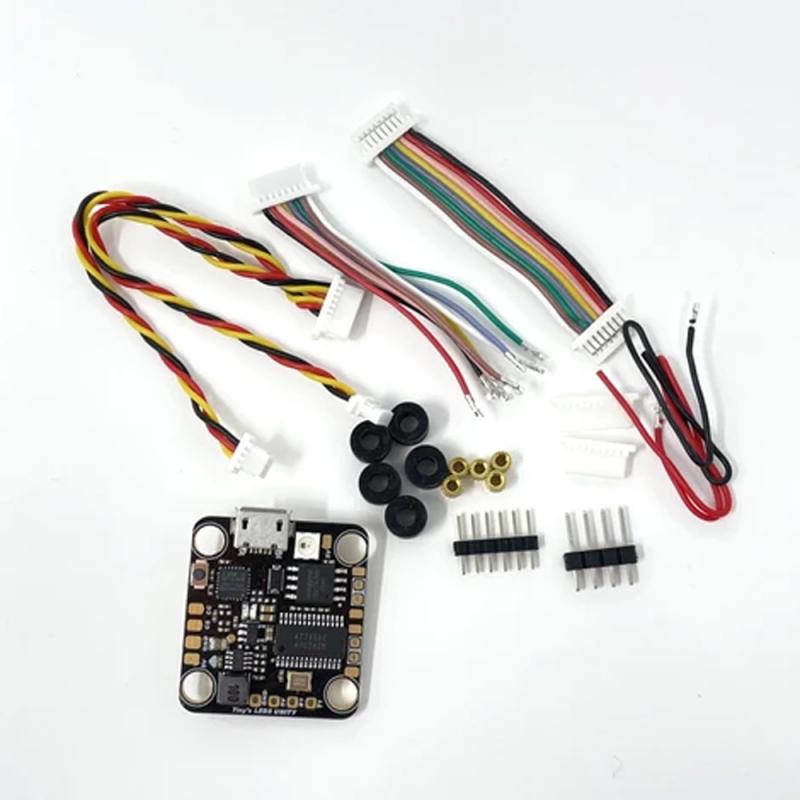

CONTENTS:

  • 1x Tiny’s LEDs Unity 20×20 FC
  • 1x Wiring harness for Aikon PIN32 ESC
  • 1x Wiring harness with un-pinned connector. (Build your own easily)
  • 1x 8 pin ESC connector
  • 1x 10 pin ESC connector
  • 5x Mounting Gummies
  • 5x M2 Reducer mount.(Slide Gummies over)
  • 1x Set of 2.54mm pins (RX)
  • 1x Set of 2.0mm Pins (VTX)
  • 1x Tiny’s LEDs Sticker 🙂
