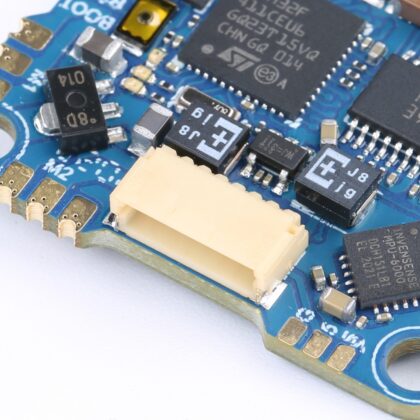

SucceX-D 20A V1 Whoop F4 AIO Board (MPU6000)

CHF 89.90

Am Lager, kann sofort verschickt werden.

Kategorie:

Beschreibung

PRODUCT DESCRIPTION

FC // SucceX-D F4 AIO

Size:30.5*30.5mm

Mounting pattern:25.5*25.5mm/φ3mm

Weight: 6.7g

Connector:Micro-USB

MCU:STM32F411

Gyro:MPU6000

Blackbox:8MB

*Blackbox can only be used with Betaflight 4.3.0 or the Betaflight 4.2.9 hex file compiled by us. Download link here (LINK)

BEC  output: 5V 2A

INA pad:nR2

Barometer:no

Constant current:20A,25A(Burst)

Input:2-4S

Current sensor:yes

BLHeli:BLHeli-S

ESC Telemetry:no

Firmware Target:IFLIGHT_F411_PRO

ESC Firmware:G-H-30 BLS 16.7

Package Includes:

– SucceX-D Whoop V1 F4 AIO Board× 1

– Capacitor 470uF/16V × 1

– XT30 18awg cable

– Wire harness (plug&play) for DJI Air Unit × 1

– M2 silicon grommets × 4

– M2 damping balls x 4

– M2*8mm Screws x 4
