Meteor65 Brushless 1S Whoop Crossfire BNF

CHF 139.90

NICHT am Lager

Kategorie:

Beschreibung

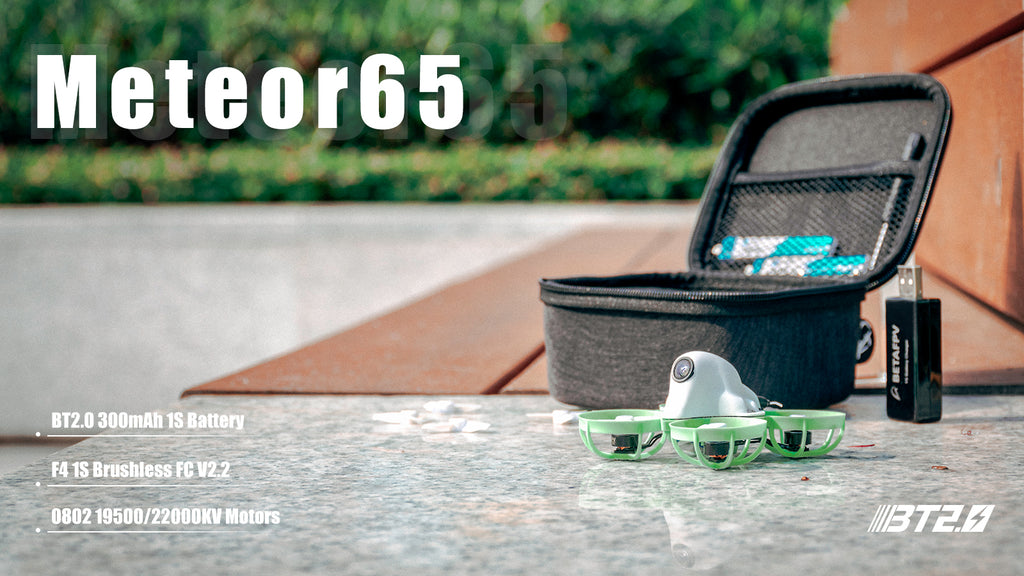

Meteor65, a leading 1S whoop WINTER TIME drone. It’s equipped with the BT2.0 connector, lightest F4 1S FC and 0802 19500/22000KV motors. With the stronger and powerful dynamical system, you’ll immediately notice how fantastic the 22.84g Meteor racer is at takeoff. It feels amazing as you hover around indoor, then let it rip and haul around the house!

What’s more, Meteor65 comes back on 30th March as a kit,  it is with abundant accessories of 2 lipo batteries, BT2.0 charger & tester, extra 1 set of props, 1 screwdriver and the portable bag. It is easy to use and with reasonable price! Also, the camera angle has been adjusted to 30°, which brings you more greater flying experience!

The TBS Crossfire Nano receiver with minimal T Crossfire antenna is available on Meteor series for all CRSF user. This specific variation is only designed to be small, light, and easy to use.

This antenna is designed by Michael Anderson, produced by FPVCycle and manufactured by TBS. Know more about this antenna.

Bullet Point

  • Meteor65 is the first generation whoop drone powered by brand-new BT2.0 1S battery. The BT2.0 connector effectively decreases internal connector resistance for a much better discharge performance compare with initial PH2.0 connector.
  • Flight controller pre-soldered the BT2.0 cable, which can provide more stable and powerful 9A continuous current and 15A burst.
  • For minimizing weight and optimal performance, it applies the perfect lightest combo with F4 1S FC V2.2(2.6g) and M01 AIO camera VTX(3g).
  • By using the latest 0802 19500 / 22000KV motors and 31mm 3-blade props, this kit provides you a completely different experience of a powerful indoor flight. 0802 19500 / 22000KV motors are features of ball bearing and lead wires soldered to PCB to allow you to repair it easier once it’s disconnected.
  • Meteor65 lower profile frame is reduced 0.75g to 3.08g only. The battery slot is closer to the center of gravity for smoother flying experience, and you will land on the motor screws instead of the battery.
  • The package comes with 2 lipo batteries, BT2.0 charger & tester, extra 1 set of props, 1 screwdriver and the portable bag.  Meanwhile, we have also released BT2.0 Battery charger for your needs.

Specification

  • Item: Meteor65 1S Brushless Whoop
  • Weight: 22.84g (without battery)
  • FC&ESC: F4 1S Brushless Flight Controller V2.2
  • Frame: Meteor65 65mm 1S Brushless Frame
  • Motors: 0802 22000KV Motors
  • Props: 31mm 3-blade props (1.0mm Shaft)
  • VTX&Camera: M01 AIO Camera VTX
  • Canopy: Canopy for Micro Camera
  • Receiver Option: TBS Crossfire Nano RX
  • Battery: BT2.0 300mah 1S Battery
  • Flight time: 0802 19500KV motor version: 3:30min-4min / 0802 22000KV motor version: 1:30min-2min

BT2.0 Connector

BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. BT2.0 connector has decreased internal resistance of connector effectively allowing more current to be transferred, which means it supports 9A continuous current (15A burst). This means stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A. You can enjoy more flight time without disturb of low voltage warning due to reducing voltage sag.

See the graph below of comparing the BT2.0 connector and PH2.0 connector (solid pin version) in BETAFPV 1S 300mAh battery. The discharge current is 9A in this test. The BT2.0 has double the time (about 2 minutes) and a 0.2v improvement in voltage sag.

Not sure if it’s worth to switch BT2.0? Check more from Joshua Bardwell‘video- Proof that BT2.0 connector is better than PH 2.0

Much more choices of BT2.0 series accessories.
We know some of pilots might have a question about how to deal with the old PH2.0 1S battery. So we provide some accessories like BT2.0 connectors for those people who want to convert the PH2.0 connector to BT2.0 connector.

Flight Controller

F4 1S brushless FC V2.2- This is the lightest FC in the current market. It has a
slim and sleek design, weighs just 2.69g and performs better giving it maximum weight savings, power, and responsiveness.

Camera & VTX

M01 AIO Camera VTX- The unit is ultra-lightweight only 3g, perfect for Meteor65. It comes with a super Mini 5.8GHz FPV Transmitter + 600TVL FPV Camera + RG178 Antenna, features 6 bands and 48 channels on the 5.8GHz band with Raceband.

Motors

22000KV motors using ball bearing instead of brass bushings, and PCB connector. More durable and easier to repair once disconnection.

Frame

The lightest lower profile 65mm frame- Meteor65 frame is reduced 0.75g
to 3.14g only. The battery slot is closer to the center of gravity for a
smoother flying experience, and you will land on the motor screws instead of the battery. There are more options for colorful frames such as Beta-blue, mint-green, sakura-pink, mango-orange, etc.

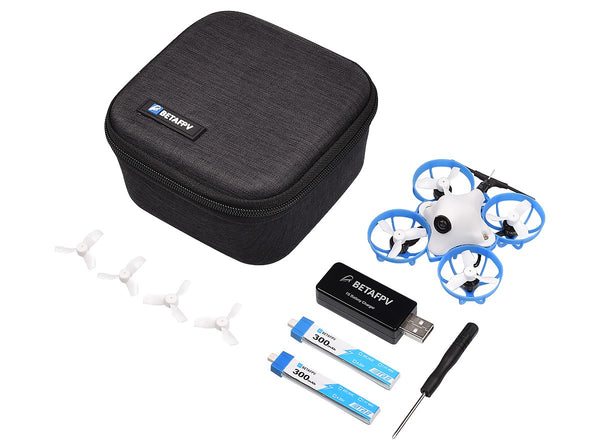

Package

  • 1 * Meteor65 Brushless Whoop Quadcopter (1S)
  • 2 * 300mAh 1S 30C Battery with BT2.0 connector
  • 1 * BT2.0 Battery Charger and Voltage Tester
  • 1 * Customized Carry Case
  • 1 * Spare 31mm 3-blade props (1.0mm Shaft)
  • 1 * Screwdriver

Produkt darf in der Schweiz nicht betrieben werden. Nicht für Schweizer Kunden.
