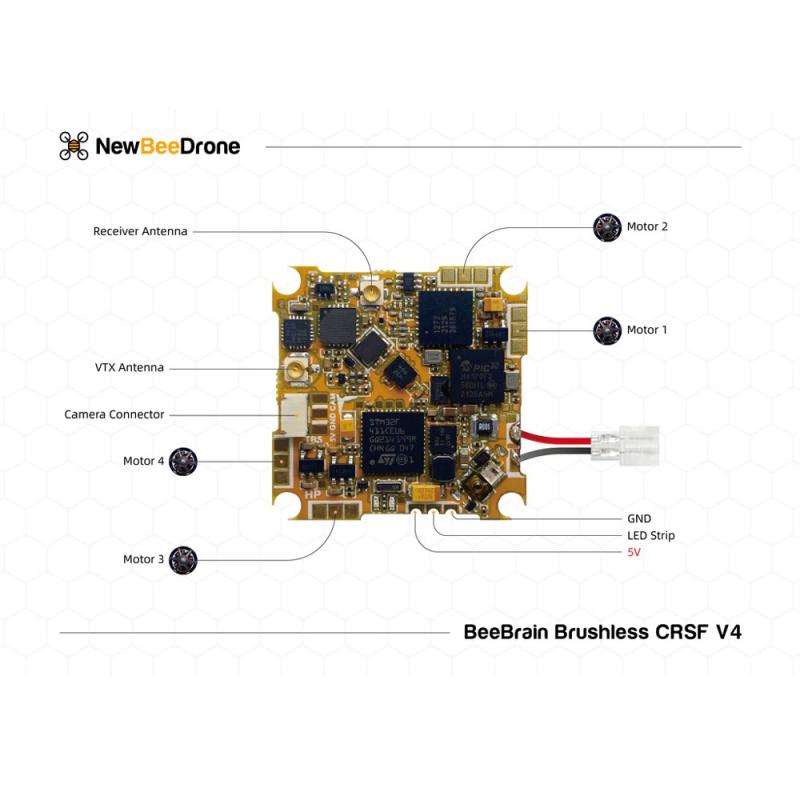

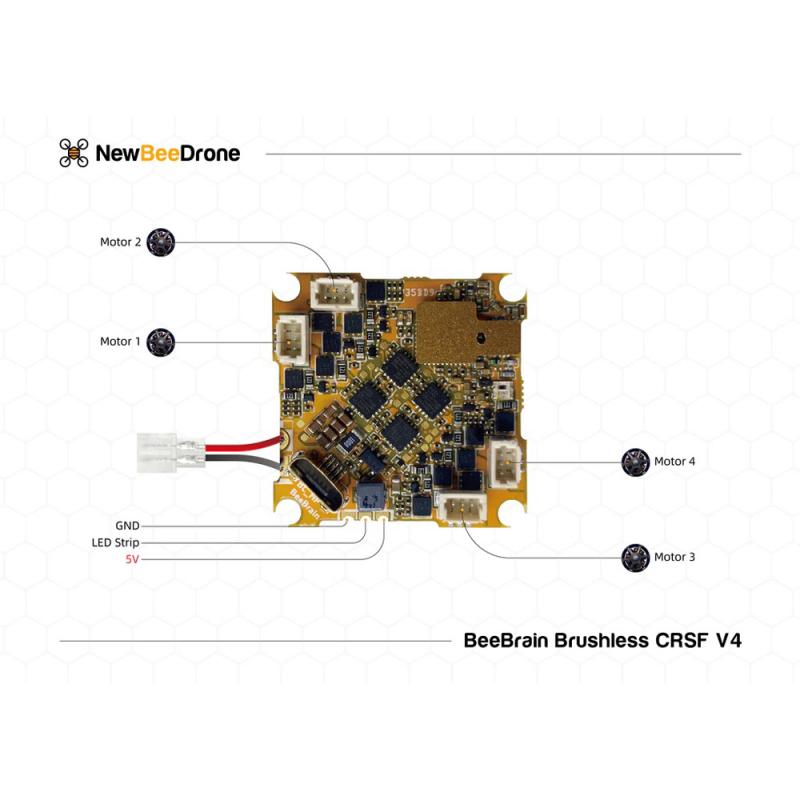

NBD x TBS BeeBrain BLV4 AIO Flight Controller Crossfire

Specification

• MCU: STM32F411
• GYRO：BMI270
• VTX: Switchable output power from 5mw- 25mw(for Racing) – SmartMAX(SmartMax up to 400mw)  with BeeTX 5.8Ghz Antenna
• ESC: 12A BLHeliS Pre-Flash with Bluejay 0.18 target: S-H-40 48kHz
• ESC Connector: JST-1.0 3Pin
• OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
• Receiver: Crossfire Nano receiver with MINIMORTAL T ANTENNA
• Flight Controller Weight: 6.5g(Include antennas and battery connector)
• Flight Controller Size: Outer dimensions: 29x29x7.6mm
• Flight Controller Holes: 25.5×25.5mm
• Battery input: 1-2S (For 2S you will need to set throttle cap at less 50%)
• Uart2:   Crossfire Nano receiver
• Power Connector: NBD-PH2.0 connector

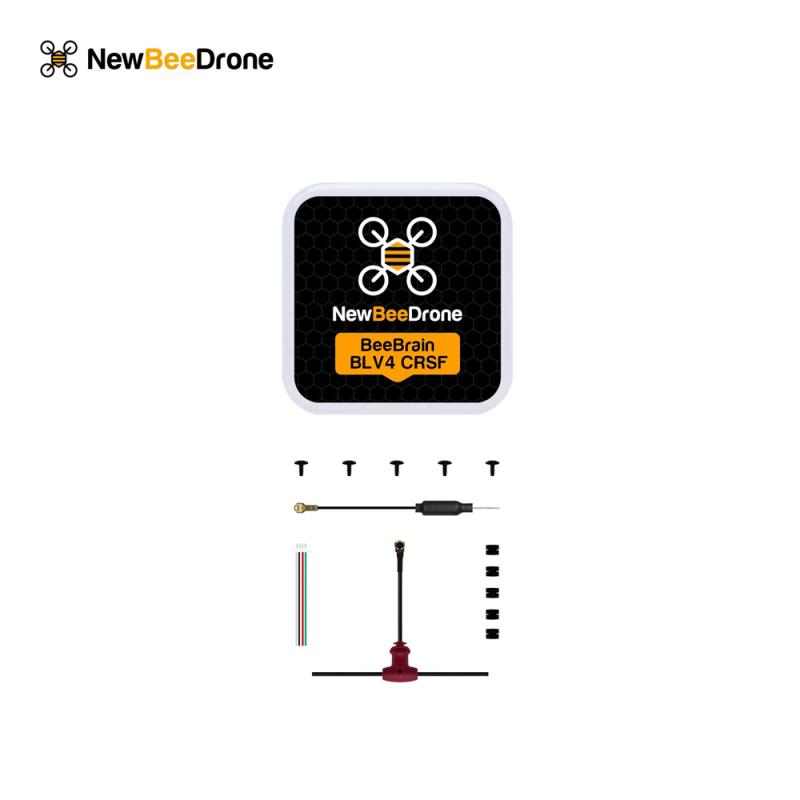

Includes

• 1 x BeeBrain BLV4 CRSF Flight Controller
• 4 x Grommet
• 4 x Screw
• 1 x MINIMORTAL T Antenna
• 1 x VTX Antenna

Firmware

• BeeBrain BLV4 CRSF Betaflight 4.4  firmware
