Beschreibung
skky GoPro Kit for AOS 3.5 V5 – sub 250g incl. GoPro & O4 Pro
Unlock a world of sub 250g flying in GoPro quality. This kit allows the integration of a GoPro 9/10/11/12 into the low-vibration AOS 3.5 V5 frame and achieve an all-up weight of the drone below 250 grams. Integrating the GoPro into the frame results in a lighter, smaller, more wind-resistant and robust build than mounting a naked GoPro on top of the quad. This kit is made for cinematic flying where weight and noise matters without compromising on performance and image quality (no vibration / jello). Designed by skkyFPV in collaboration with AOS RC.
Key features of the skky GoPro Kit
- 8g light (made for sub 250g builds)
- Stable GoPro footage (no vibration / jello)

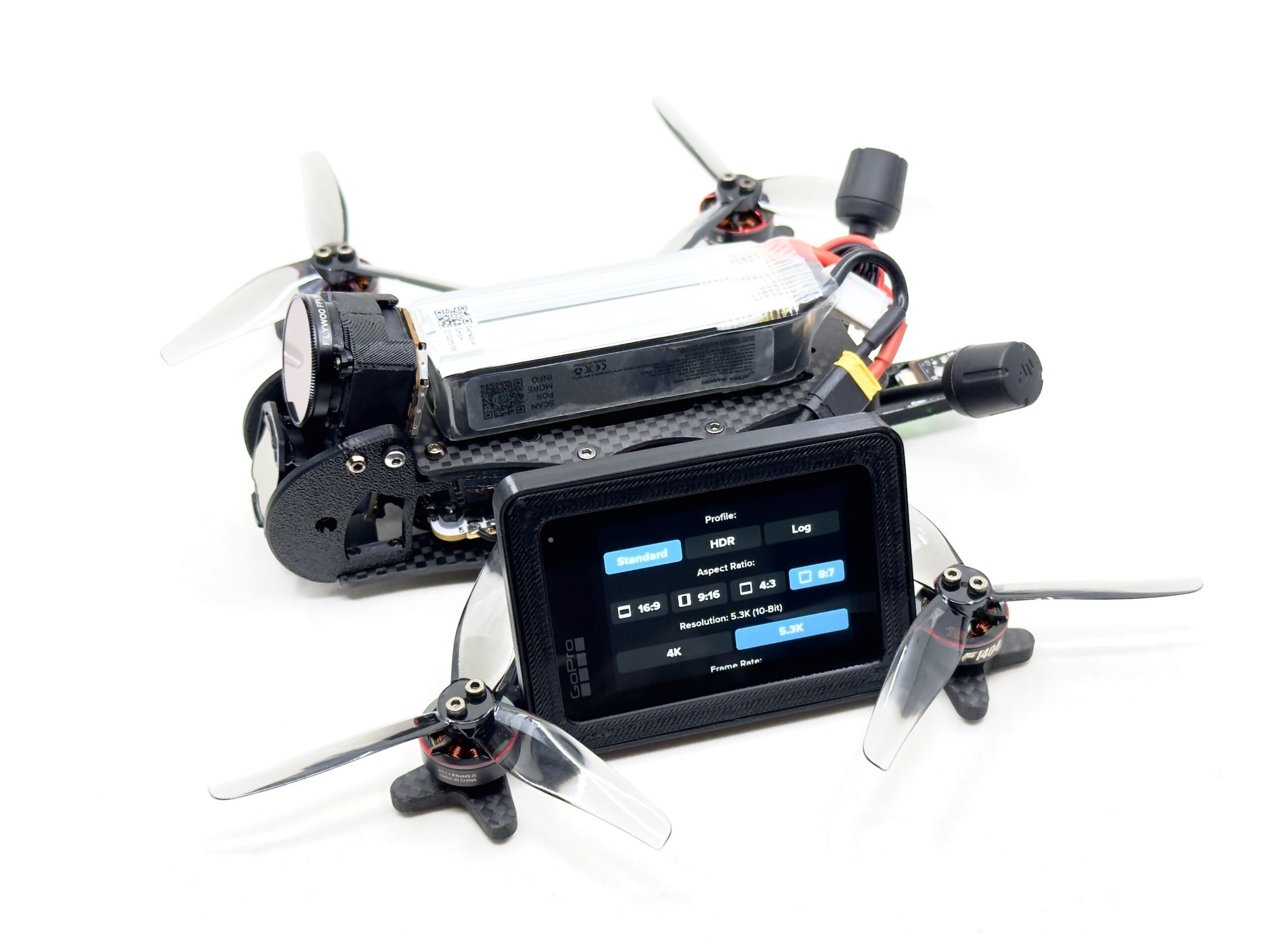

- Supporting GoPro touchscreen, speaker and mic
- Full control with two GoPro buttons & status light
- Variable GoPro angle from 0-30 degree
- Robust design protecting the GoPro
- ND Filter support

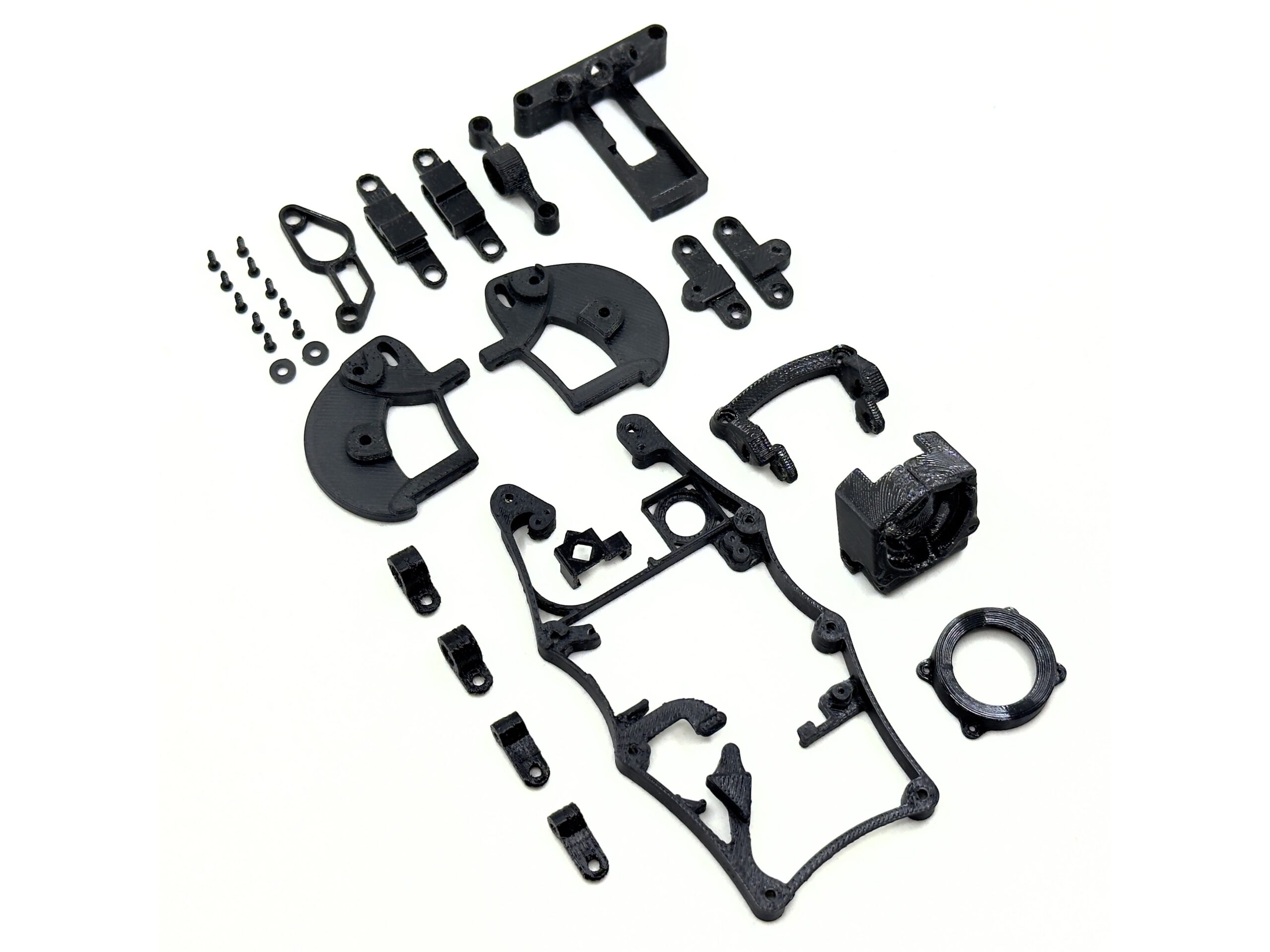

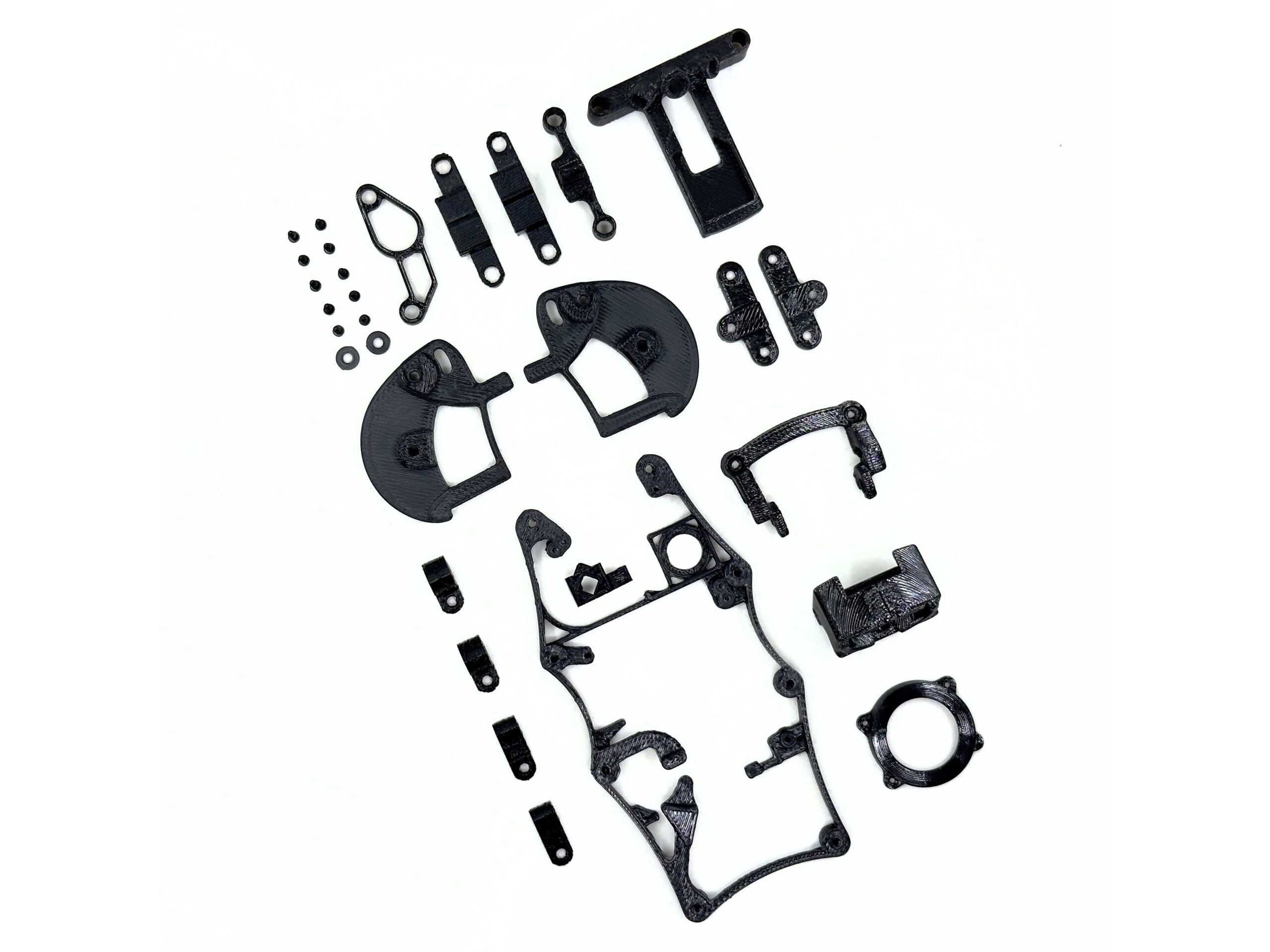

Kit includes
- GoPro Mainboard Mount (PETG)
- GoPro Lens Mount (TPU)
- GoPro Base Mount (TPU)
- GoPro Microphone Bracket (PETG)
- GoPro Flywoo ND Filter Mount (PETG)
- GoPro O4 Pro ND Filter Mount (PETG)
- GoPro Camera Cage (PETG)
- Naked O4 Pro / Lite Camera Adapter (TPU)
- Naked O3 Camera Adapter (TPU)
- O4 Pro / O4 Lite / O3 Antenna & GPS Mount (TPU)
- Crossfire Receiver Mount (TPU)
- ELRS Receiver Mount (TPU)
- Capacitor Unicon 25V 470uF Mount (TPU)
- ViFly Finder Mini Mount (PETG)
- Two M2 washers
- Ten M1.4x5mm Phillips screws
Not included but required for the skky GoPro Kit
Compatibility
- Frame: AOS 3.5 V5
- GoPro: 9/10/11/12/13
- VTX Camera: DJI O4 Pro, DJI O4 Lite, Naked O4 Pro, (naked) O3, Caddx Vista, Nano Cams
- Stack (max height of 15mm): F7 AIO recommended
- ND Filters: Flywoo GoPro ND Filters, O4 Pro ND Filters
- Antenna: Mount for standard and naked O4 Pro / Lite / O3 antenna included
- GPS: Mount for Flywoo Nano GPS v3 & v3.1 included
- Receiver: Mount for ELRS & Crossfire included
- Prop Guards: skky light and full prop guard
Assembly videos on YouTube
skky35 build guide part 1 – how to build a light AOS 3.5 V5
skky35 build guide part 2 – how to assemble the skky kit for AOS 3.5 V5
Visit www.skkyfpv.com for more information including build guides and support. Join our community on Discord and Instagram.
