The next revolution in circular polarization technology, the Triumph Pro gives professional performance in a compact, durable package. Don’t let the small size fool you, the Triumph Pro doesn’t compromise on performance. Designed by IBCrazy and manufactured by TBS, the multi-phase elements use patent pending technology to create a precise circular pattern that is not distorted by proximity to your aircraft or other objects.
The microstrip antenna design together with a rigid and ultrasonic-welded enclosure allow mounting in exposed places, where signal propagates better. The antenna comes in 4 connector flavors: u.FL, MMCX, MMCX 90º and SMA.
- Manufactured and tested to highest standards
- Best in class range and signal quality
- Incredibly small and low weight
- Ultrasonic welded and foam infused cover for ultimate crash-protection
- Double-jacket semi-rigid cable for heavy impact resistance
- Frequency range: 5500-6000MHz
- Gain: 1.6dbic
- Axial Ratio: 0.99
- Cable: RG402 (heavy duty)
- Weight: 11.5g
- Height: 85mm, 3.3 in
- Connector: MMCX (90º angle)
- Dimensions (PDF)

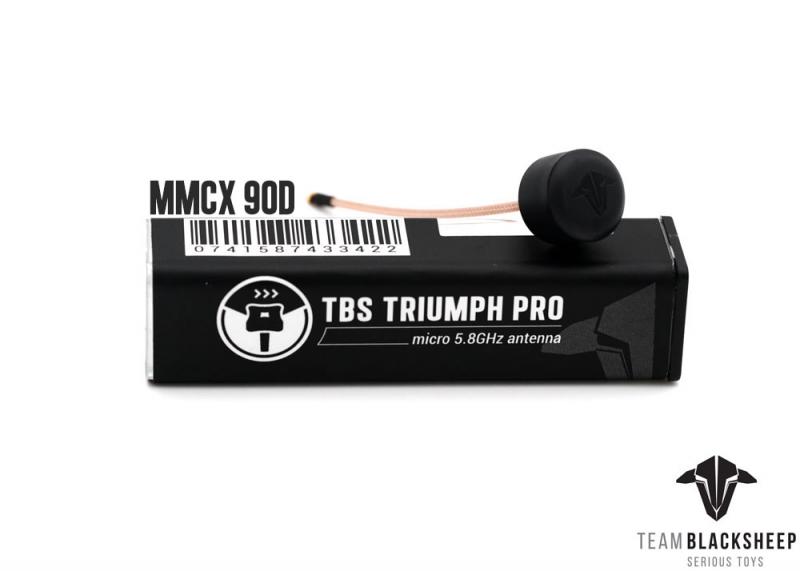

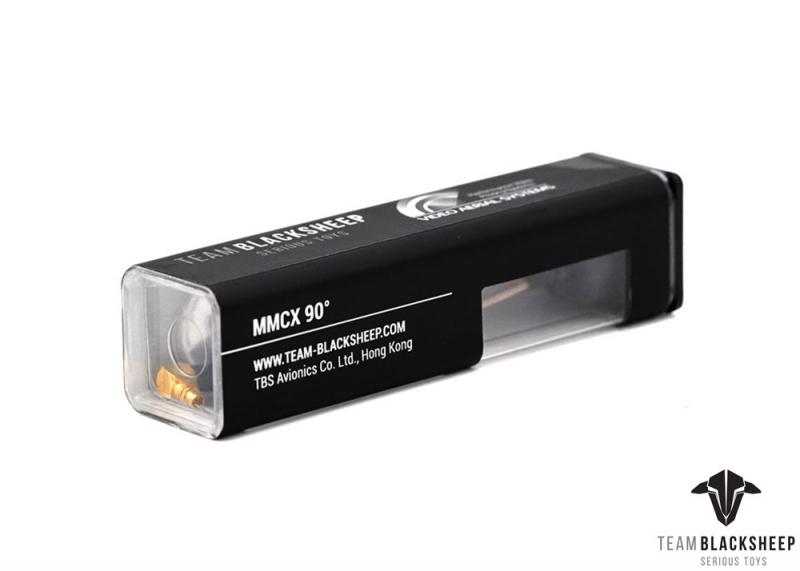

- 1x TBS Triumph Pro MMCX 90º
