BetaFPV VR01 FPV Goggles

CHF 59.90

Am Lager, kann sofort verschickt werden.

Kategorie:

Beschreibung

BETAFPV VR01 FPV Goggles – a First-Person-View Goggle with 4.3 inches 800*480px HD high brightness LCD which will allow you to experience a bright world without warped and blurred images. Adopt ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, comfortable like cotton and suitable for all age ranges.

Bullet Point

  • BETAFPV VR01 FPV Goggles is with 4.3 inches 800*480px HD high brightness LCD, which is specially tuned for FPV racing or Model airplane.
  • Adopt ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly.
  • Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand.
  • Come with an advanced auto-searching function and show you the working frequency on screen.
  • 92% transparent lens adopted, no distort, no blur on the adage of the screen.
  • Lightweight 375g with 2hr 2000mAh battery, RTF for any scale, racing, Model airplane game.

Specification

BODY

  • Dimension: 155x144x113mm
  • Weight: 375g with 2hr 2000mAh battery
  • Belt: three-Ways adjustable belt

SCREEN

  • screen size: 4.3 inch
  • Screen resolution: 800*480 (No blur after enlarge by the lens)
  • Screen brightness: 300cd/m2 with special high brightness backlight LED for outdoor FPV
  • View Angle: 12 O’CLOCK

LENS

  • 2.8x boost of the video to acquire intense feel-in-there video
  • 92% transparent rate no distort of light

JACK

  • Input CVBS
  • Headphone sound output
  • TF Card(C10) Max32G
  • USB DC5V IN, the device operating current of [email protected],built-in battery maximum charge current of [email protected]; if the device is working when charging, please pay attention to selecting the rated current greater than 2A/5V charging equipment

BATTERY

  • Built-in 3.7V/2000mAh high-capacity polymer battery, LED stays red while charging. When charging is completed, the LED will turn to bright green.
  • Each full charge revive is around 2 hours working time

Band and Channel Selection

  CH
CH 1
(MHZ)
CH 2
(MHZ)
CH 3
(MHZ)
CH 4
(MHZ)
CH 5
(MHZ)
CH 6
(MHZ)
CH 7
(MHZ)
CH 8
(MHZ)
GROUP
A
5865
5845
5825
5805
5785
5765
5745
5725
B
5733
5752
5771
5790
5809
5828
5847
5866
D
5705
5685
5665
5645
5885
5905
5925
5945
E
5740
5760
5780
5800
5820
5840
5860
5880
R
5658
5695
5732
5769
5806
5843
5880
5917

Operation Instructions

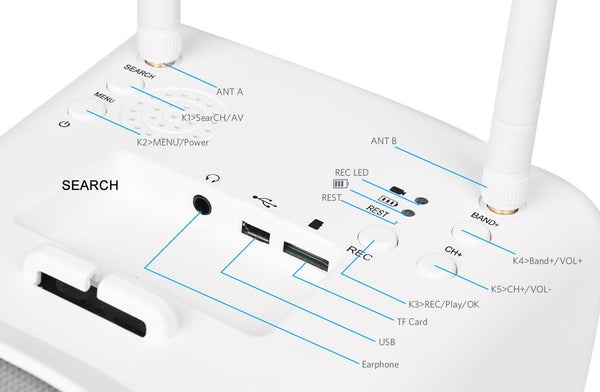

KEY
  • K1>SearCH/AV
Default mode, Short press for automatically search signals to certain signal strength and stops on that channel; Long press switch RF MOD and Long press for AV MOD; In Play mode, pressed jump volume to adjust OSD.
  • K2>MENU/Power
Default mode, Short press for MENU OSD; Long press 3S for Power OFF/ON; MENU pressed, this button is used as the Return.
  • K3>REC/Play/OK
Default mode, Short press for recording /STOP; Long press for Play mode; MENU pressed, this button is used as the confirmed.<
  • K4>Band+/VOL+
Default mode, Short press for Band+ option A, B, D, E, F, R cycle selection; Long press for Volume control -; MENU pressed, this button is used as the UP.
  • K5>CH+/VOL-
Default mode, Short press for CH 1~8 cycles; Long press for Volume control +, MENU pressed, this button is used as the DOWN.

PLAYBACK

  • Call MENU and select Playback (Short Press K1 button to call menu, and use K3 button to select Playback mode; Or long pressed K3 )
  • Review/Replay in Playback mode (Playing Short K1 jump volume adjust OSD)
  • Buttons have a different function in playback mode
  • Record file: AVI, 800*480px progressive
  • Support up to 32G TF card (C10 recommend)
  • K2: Playback menu (volume control/file delete/protect)
  • K4: UP/ fast backward<<
  • K5: DOWM/ fast backward>>
  • K3: Select/Play/ Pause
  • K1: Quit Playback mode
NOTE: If the device is not used for a long time, please charge once every four months, in order to protect the battery.

Package

  • 1 * BETAFPV VR01 FPV Goggles
  • 1 * USB Charging Cable
  • 2 * Dipole 5.8G Antennas
  • 1 * Adjustable Headband
