Beschreibung
FEATURES
- Perfect for Caddx Vista, 4K Tarsier or classic analog setup
- No props in shot of flight camera with 3” arms
- Dual stack, 20×20 M3 and M2 centre, 20×20 M2 rear
- Injection moulded arm skids and front bumper
- Injection moulded fitted wire guards to protect from prop strikes
- Two battery pads included, 2mm rubber and ultra-light hook pad
- Custom fitted Racewire available for 4” arms
- 3” frame weight 58g, carbon fibre + hardware
- 4” frame weight 61g, carbon fibre + hardware
- 4mm thick arms, single shoulder bolt per arm
- 2mm thick upper and lower main plates
- 1.5mm thick top and camera plates

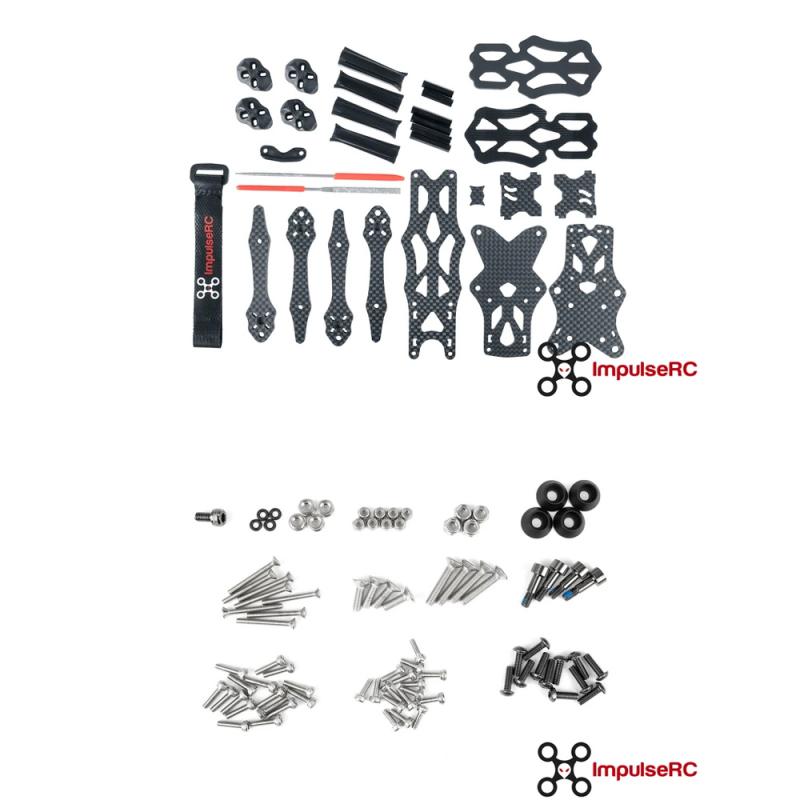

CARBON
- (1x) Micro Apex Arm Key CF 3.5mm
- (1x) Micro Apex Top Plate CF 1.5mm
- (1x) Micro Apex Main Lower CF 2mm
- (1x) Micro Apex Main Upper CF 2mm
- (2x) Micro Apex Cam Side Plate CF 1.5mm
- (4x) Micro Apex 3″ Arm CF 4mm
ACCESSORIES
- (1x) Micro Apex Hook LIPO pad – BLACK
- (1x) Micro Apex LIPO pad – 2mm BLACK
- (1x) Diamond File – Flat (Mini)
- (1x) Diamond File – Round (Mini)
- (1x) Lipo Strap – Small – ImpulseRC
- (1x) Micro Apex Plastics Kit – BLACK
- (1x) Micro Apex Arm Covers – BLACK – (4 Pack)
HARDWARE
- (4x) M2.5 26mm Standoff – Aluminium – Black
- (2x) M2.5 20mm Standoff – Aluminium – Black
- (4x) M3x11mm Shoulder bolt – High Tensile Carbon Steel – Gunmetal
- (4x) 3x10mm Cone Washer – Aluminium – Black
- (4x) M3 Press Nut – Stainless Steel
- (1x) M3x6mm Cap – High Tensile Carbon Steel – Gunmetal
- (12x) M2.5x8mm Button – High Tensile Carbon Steel – Gunmetal
- (16x) M2x6mm Cap – Stainless Steel
- (16x) M2x8mm Cap – Stainless Steel
- (4x) M3x10mm Countersunk Screw – Stainless Steel
- (4x) M3x16mm Countersunk Screw – Stainless Steel
- (8x) M3x18mm Countersunk Screw – Stainless Steel
- (8x) M2 Lock Nut – Stainless Steel
- (4x) M3 Lock Nut – Stainless Steel
- (4x) 1.8x1mm O-ring
