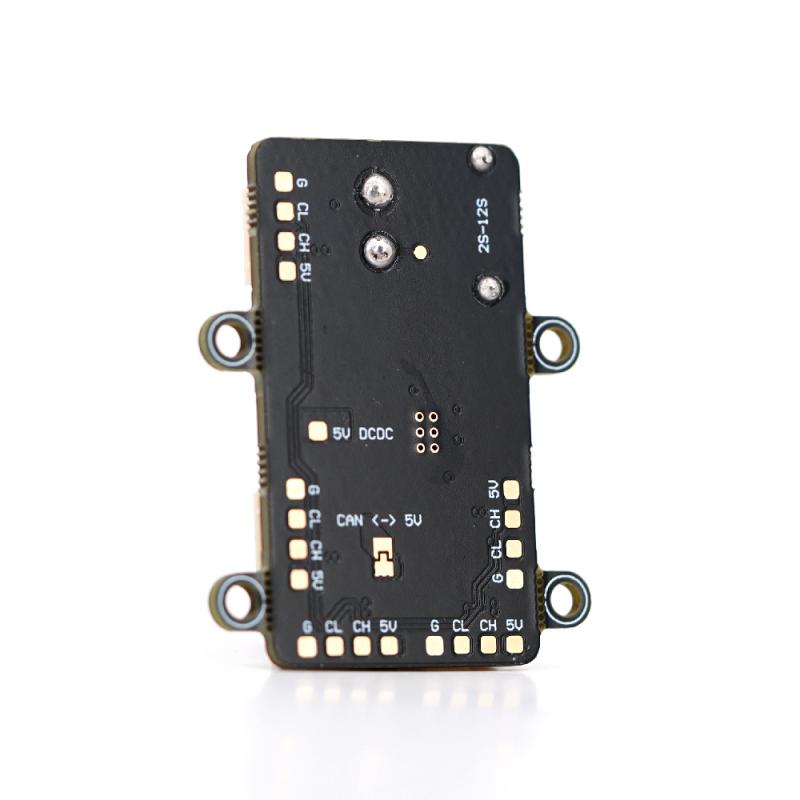

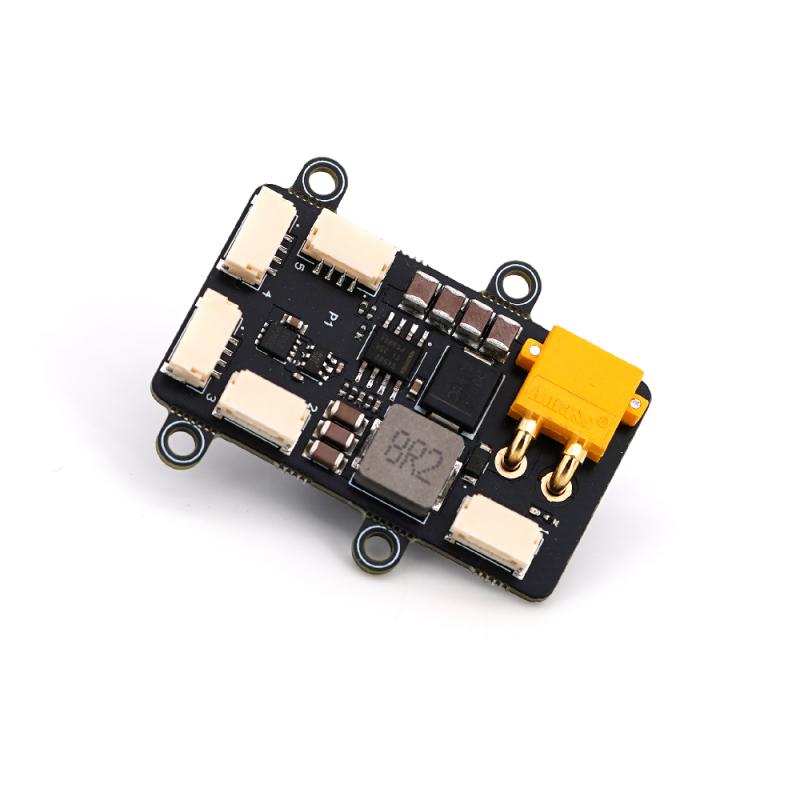

The TBS Lucid Splitter w/ 4A BEC, a professional signal distribution and power supply for your DroneCAN peripherals. Easy connectivity and streamlined wiring, without any hassles or worry.

Features

• Plug-and-Play Installation
• Support input 3S -12S
• Robust & Efficient 4A Power Distribution
• Integrated JST-GH split connectors
• XT30 power input

Specifications

• Load Current: 4A continuous, 1.5A for each JST-GH port
• 5x CAN port connector: JST-GH 4-pin (SM04B-GHS-TB)
• Operating Input Range: 9V to 52V (3S-12S)
• Size & Weight: 44 x 25 x 8mm, 12g
• Output: 5V
• CAN-H/CAN-L in parallel: 5

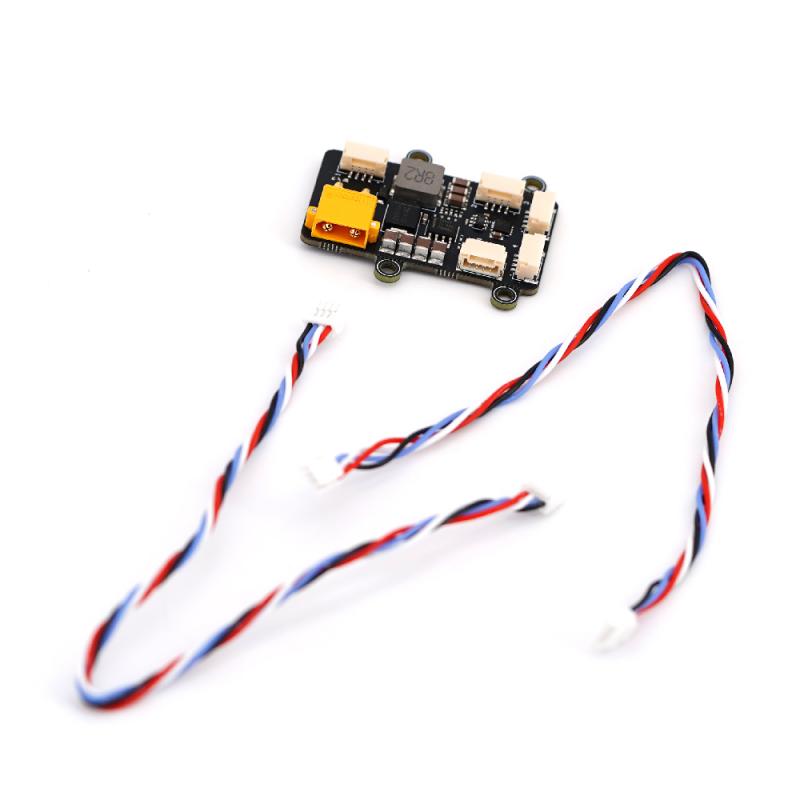

Includes

• 1x TBS TBS Lucid Splitter w/ 4A BE
• 2x CANBUS cable (4pins 20cm)

User Manual

– [Download]
